/* ADAT for Teensy 4.X
Copyright (c) 2017, Ernstjan Freriks,
Thanks to Frank Bösing & KPC & Paul Stoffregen!
Permission is hereby granted, free of charge, to any person obtaining a copy
of this software and associated documentation files (the "Software"), to deal
in the Software without restriction, including without limitation the rights
to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is
furnished to do so, subject to the following conditions:
The above copyright notice, development funding notice, and this permission
notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
THE SOFTWARE.
*/
// Chris O. 3/25/2023
// Fix compile error on Teensy LC
// T4.x -PLL frequency correction @88200 for ADAT @44100, MCLK-22,579,200MHz was 22,579,125MHz
// T4.x -Disabled receiver, ADAT IN not implemented yet.
// T4.x -Set Transmit FIFO Watermark 1, was 0.
//

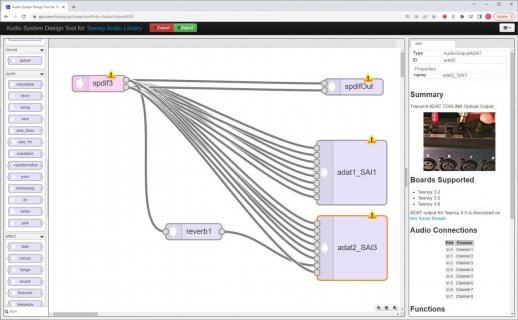

// -- GUItool: AudioOutputADAT --> adat1 --
// T3.x - T4.x Implemented Mute/Unmute on all 8ch. ADAT
// adat1.mute_PCM(bool mute); // 1 mute - 0 unmute
//
// Implemented Teensy 3.x - 4.x simple way to change the samplerate of ADAT at runtime.
// NOTE: 44100(default) or 48000 ADAT Only 8ch, No ADAT SMUX II-IV yet.
// !!! But be aware that not the entire lib will work. Not all parts of it support that!
// adat1.set_Freq(44100);
// adat1.set_Freq(48000);
// This needs edit in output_adat.h public: class
// void set_Freq(int freq); // change the samplerate of ADAT at runtime, 44100 or 48000 only!!!
#include <Arduino.h>
#include "output_adat.h"
#include "utility/imxrt_hw.h"
#if defined(KINETISK) || defined(__IMXRT1052__) || defined(__IMXRT1062__)
audio_block_t * AudioOutputADAT::block_ch1_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch2_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch3_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch4_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch5_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch6_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch7_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch8_1st = NULL;
audio_block_t * AudioOutputADAT::block_ch1_2nd = NULL;
audio_block_t * AudioOutputADAT::block_ch2_2nd = NULL;
audio_block_t * AudioOutputADAT::block_ch3_2nd = NULL;
audio_block_t * AudioOutputADAT::block_ch4_2nd = NULL;
audio_block_t * AudioOutputADAT::block_ch5_2nd = NULL;
audio_block_t * AudioOutputADAT::block_ch6_2nd = NULL;
audio_block_t * AudioOutputADAT::block_ch7_2nd = NULL;
audio_block_t * AudioOutputADAT::block_ch8_2nd = NULL;
uint16_t AudioOutputADAT::ch1_offset = 0;
uint16_t AudioOutputADAT::ch2_offset = 0;
uint16_t AudioOutputADAT::ch3_offset = 0;
uint16_t AudioOutputADAT::ch4_offset = 0;
uint16_t AudioOutputADAT::ch5_offset = 0;
uint16_t AudioOutputADAT::ch6_offset = 0;
uint16_t AudioOutputADAT::ch7_offset = 0;
uint16_t AudioOutputADAT::ch8_offset = 0;
bool AudioOutputADAT::update_responsibility = false;
DMAMEM __attribute__((aligned(32))) static uint32_t ADAT_tx_buffer[AUDIO_BLOCK_SAMPLES * 8]; //4 KB, AUDIO_BLOCK_SAMPLES is usually 128
DMAChannel AudioOutputADAT::dma(false);
static const uint32_t zerodata[AUDIO_BLOCK_SAMPLES / 4] = {0};
// These are the lookup tables. There are four of them so that the remainder of the 32 bit result can easily be XORred with the next 8 bits.
static const uint32_t LookupTable_firstword[256] = { 0x0, 0x1ffffff, 0x3ffffff, 0x2000000, 0x7ffffff, 0x6000000, 0x4000000, 0x5ffffff, 0xfffffff, 0xe000000, 0xc000000, 0xdffffff, 0x8000000, 0x9ffffff, 0xbffffff, 0xa000000, 0x1fffffff, 0x1e000000, 0x1c000000, 0x1dffffff, 0x18000000, 0x19ffffff, 0x1bffffff, 0x1a000000, 0x10000000, 0x11ffffff, 0x13ffffff, 0x12000000, 0x17ffffff, 0x16000000, 0x14000000, 0x15ffffff, 0x3fffffff, 0x3e000000, 0x3c000000, 0x3dffffff, 0x38000000, 0x39ffffff, 0x3bffffff, 0x3a000000, 0x30000000, 0x31ffffff, 0x33ffffff, 0x32000000, 0x37ffffff, 0x36000000, 0x34000000, 0x35ffffff, 0x20000000, 0x21ffffff, 0x23ffffff, 0x22000000, 0x27ffffff, 0x26000000, 0x24000000, 0x25ffffff, 0x2fffffff, 0x2e000000, 0x2c000000, 0x2dffffff, 0x28000000, 0x29ffffff, 0x2bffffff, 0x2a000000, 0x7fffffff, 0x7e000000, 0x7c000000, 0x7dffffff, 0x78000000, 0x79ffffff, 0x7bffffff, 0x7a000000, 0x70000000, 0x71ffffff, 0x73ffffff, 0x72000000, 0x77ffffff, 0x76000000, 0x74000000, 0x75ffffff, 0x60000000, 0x61ffffff, 0x63ffffff, 0x62000000, 0x67ffffff, 0x66000000, 0x64000000, 0x65ffffff, 0x6fffffff, 0x6e000000, 0x6c000000, 0x6dffffff, 0x68000000, 0x69ffffff, 0x6bffffff, 0x6a000000, 0x40000000, 0x41ffffff, 0x43ffffff, 0x42000000, 0x47ffffff, 0x46000000, 0x44000000, 0x45ffffff, 0x4fffffff, 0x4e000000, 0x4c000000, 0x4dffffff, 0x48000000, 0x49ffffff, 0x4bffffff, 0x4a000000, 0x5fffffff, 0x5e000000, 0x5c000000, 0x5dffffff, 0x58000000, 0x59ffffff, 0x5bffffff, 0x5a000000, 0x50000000, 0x51ffffff, 0x53ffffff, 0x52000000, 0x57ffffff, 0x56000000, 0x54000000, 0x55ffffff, 0xffffffff, 0xfe000000, 0xfc000000, 0xfdffffff, 0xf8000000, 0xf9ffffff, 0xfbffffff, 0xfa000000, 0xf0000000, 0xf1ffffff, 0xf3ffffff, 0xf2000000, 0xf7ffffff, 0xf6000000, 0xf4000000, 0xf5ffffff, 0xe0000000, 0xe1ffffff, 0xe3ffffff, 0xe2000000, 0xe7ffffff, 0xe6000000, 0xe4000000, 0xe5ffffff, 0xefffffff, 0xee000000, 0xec000000, 0xedffffff, 0xe8000000, 0xe9ffffff, 0xebffffff, 0xea000000, 0xc0000000, 0xc1ffffff, 0xc3ffffff, 0xc2000000, 0xc7ffffff, 0xc6000000, 0xc4000000, 0xc5ffffff, 0xcfffffff, 0xce000000, 0xcc000000, 0xcdffffff, 0xc8000000, 0xc9ffffff, 0xcbffffff, 0xca000000, 0xdfffffff, 0xde000000, 0xdc000000, 0xddffffff, 0xd8000000, 0xd9ffffff, 0xdbffffff, 0xda000000, 0xd0000000, 0xd1ffffff, 0xd3ffffff, 0xd2000000, 0xd7ffffff, 0xd6000000, 0xd4000000, 0xd5ffffff, 0x80000000, 0x81ffffff, 0x83ffffff, 0x82000000, 0x87ffffff, 0x86000000, 0x84000000, 0x85ffffff, 0x8fffffff, 0x8e000000, 0x8c000000, 0x8dffffff, 0x88000000, 0x89ffffff, 0x8bffffff, 0x8a000000, 0x9fffffff, 0x9e000000, 0x9c000000, 0x9dffffff, 0x98000000, 0x99ffffff, 0x9bffffff, 0x9a000000, 0x90000000, 0x91ffffff, 0x93ffffff, 0x92000000, 0x97ffffff, 0x96000000, 0x94000000, 0x95ffffff, 0xbfffffff, 0xbe000000, 0xbc000000, 0xbdffffff, 0xb8000000, 0xb9ffffff, 0xbbffffff, 0xba000000, 0xb0000000, 0xb1ffffff, 0xb3ffffff, 0xb2000000, 0xb7ffffff, 0xb6000000, 0xb4000000, 0xb5ffffff, 0xa0000000, 0xa1ffffff, 0xa3ffffff, 0xa2000000, 0xa7ffffff, 0xa6000000, 0xa4000000, 0xa5ffffff, 0xafffffff, 0xae000000, 0xac000000, 0xadffffff, 0xa8000000, 0xa9ffffff, 0xabffffff, 0xaa000000};
static const uint32_t LookupTable_secondword[256] = { 0x0, 0x1ffff, 0x3ffff, 0x20000, 0x7ffff, 0x60000, 0x40000, 0x5ffff, 0xfffff, 0xe0000, 0xc0000, 0xdffff, 0x80000, 0x9ffff, 0xbffff, 0xa0000, 0x1fffff, 0x1e0000, 0x1c0000, 0x1dffff, 0x180000, 0x19ffff, 0x1bffff, 0x1a0000, 0x100000, 0x11ffff, 0x13ffff, 0x120000, 0x17ffff, 0x160000, 0x140000, 0x15ffff, 0x3fffff, 0x3e0000, 0x3c0000, 0x3dffff, 0x380000, 0x39ffff, 0x3bffff, 0x3a0000, 0x300000, 0x31ffff, 0x33ffff, 0x320000, 0x37ffff, 0x360000, 0x340000, 0x35ffff, 0x200000, 0x21ffff, 0x23ffff, 0x220000, 0x27ffff, 0x260000, 0x240000, 0x25ffff, 0x2fffff, 0x2e0000, 0x2c0000, 0x2dffff, 0x280000, 0x29ffff, 0x2bffff, 0x2a0000, 0x7fffff, 0x7e0000, 0x7c0000, 0x7dffff, 0x780000, 0x79ffff, 0x7bffff, 0x7a0000, 0x700000, 0x71ffff, 0x73ffff, 0x720000, 0x77ffff, 0x760000, 0x740000, 0x75ffff, 0x600000, 0x61ffff, 0x63ffff, 0x620000, 0x67ffff, 0x660000, 0x640000, 0x65ffff, 0x6fffff, 0x6e0000, 0x6c0000, 0x6dffff, 0x680000, 0x69ffff, 0x6bffff, 0x6a0000, 0x400000, 0x41ffff, 0x43ffff, 0x420000, 0x47ffff, 0x460000, 0x440000, 0x45ffff, 0x4fffff, 0x4e0000, 0x4c0000, 0x4dffff, 0x480000, 0x49ffff, 0x4bffff, 0x4a0000, 0x5fffff, 0x5e0000, 0x5c0000, 0x5dffff, 0x580000, 0x59ffff, 0x5bffff, 0x5a0000, 0x500000, 0x51ffff, 0x53ffff, 0x520000, 0x57ffff, 0x560000, 0x540000, 0x55ffff, 0xffffff, 0xfe0000, 0xfc0000, 0xfdffff, 0xf80000, 0xf9ffff, 0xfbffff, 0xfa0000, 0xf00000, 0xf1ffff, 0xf3ffff, 0xf20000, 0xf7ffff, 0xf60000, 0xf40000, 0xf5ffff, 0xe00000, 0xe1ffff, 0xe3ffff, 0xe20000, 0xe7ffff, 0xe60000, 0xe40000, 0xe5ffff, 0xefffff, 0xee0000, 0xec0000, 0xedffff, 0xe80000, 0xe9ffff, 0xebffff, 0xea0000, 0xc00000, 0xc1ffff, 0xc3ffff, 0xc20000, 0xc7ffff, 0xc60000, 0xc40000, 0xc5ffff, 0xcfffff, 0xce0000, 0xcc0000, 0xcdffff, 0xc80000, 0xc9ffff, 0xcbffff, 0xca0000, 0xdfffff, 0xde0000, 0xdc0000, 0xddffff, 0xd80000, 0xd9ffff, 0xdbffff, 0xda0000, 0xd00000, 0xd1ffff, 0xd3ffff, 0xd20000, 0xd7ffff, 0xd60000, 0xd40000, 0xd5ffff, 0x800000, 0x81ffff, 0x83ffff, 0x820000, 0x87ffff, 0x860000, 0x840000, 0x85ffff, 0x8fffff, 0x8e0000, 0x8c0000, 0x8dffff, 0x880000, 0x89ffff, 0x8bffff, 0x8a0000, 0x9fffff, 0x9e0000, 0x9c0000, 0x9dffff, 0x980000, 0x99ffff, 0x9bffff, 0x9a0000, 0x900000, 0x91ffff, 0x93ffff, 0x920000, 0x97ffff, 0x960000, 0x940000, 0x95ffff, 0xbfffff, 0xbe0000, 0xbc0000, 0xbdffff, 0xb80000, 0xb9ffff, 0xbbffff, 0xba0000, 0xb00000, 0xb1ffff, 0xb3ffff, 0xb20000, 0xb7ffff, 0xb60000, 0xb40000, 0xb5ffff, 0xa00000, 0xa1ffff, 0xa3ffff, 0xa20000, 0xa7ffff, 0xa60000, 0xa40000, 0xa5ffff, 0xafffff, 0xae0000, 0xac0000, 0xadffff, 0xa80000, 0xa9ffff, 0xabffff, 0xaa0000};
static const uint32_t LookupTable_thirdword[256] = { 0x0, 0x1ff, 0x3ff, 0x200, 0x7ff, 0x600, 0x400, 0x5ff, 0xfff, 0xe00, 0xc00, 0xdff, 0x800, 0x9ff, 0xbff, 0xa00, 0x1fff, 0x1e00, 0x1c00, 0x1dff, 0x1800, 0x19ff, 0x1bff, 0x1a00, 0x1000, 0x11ff, 0x13ff, 0x1200, 0x17ff, 0x1600, 0x1400, 0x15ff, 0x3fff, 0x3e00, 0x3c00, 0x3dff, 0x3800, 0x39ff, 0x3bff, 0x3a00, 0x3000, 0x31ff, 0x33ff, 0x3200, 0x37ff, 0x3600, 0x3400, 0x35ff, 0x2000, 0x21ff, 0x23ff, 0x2200, 0x27ff, 0x2600, 0x2400, 0x25ff, 0x2fff, 0x2e00, 0x2c00, 0x2dff, 0x2800, 0x29ff, 0x2bff, 0x2a00, 0x7fff, 0x7e00, 0x7c00, 0x7dff, 0x7800, 0x79ff, 0x7bff, 0x7a00, 0x7000, 0x71ff, 0x73ff, 0x7200, 0x77ff, 0x7600, 0x7400, 0x75ff, 0x6000, 0x61ff, 0x63ff, 0x6200, 0x67ff, 0x6600, 0x6400, 0x65ff, 0x6fff, 0x6e00, 0x6c00, 0x6dff, 0x6800, 0x69ff, 0x6bff, 0x6a00, 0x4000, 0x41ff, 0x43ff, 0x4200, 0x47ff, 0x4600, 0x4400, 0x45ff, 0x4fff, 0x4e00, 0x4c00, 0x4dff, 0x4800, 0x49ff, 0x4bff, 0x4a00, 0x5fff, 0x5e00, 0x5c00, 0x5dff, 0x5800, 0x59ff, 0x5bff, 0x5a00, 0x5000, 0x51ff, 0x53ff, 0x5200, 0x57ff, 0x5600, 0x5400, 0x55ff, 0xffff, 0xfe00, 0xfc00, 0xfdff, 0xf800, 0xf9ff, 0xfbff, 0xfa00, 0xf000, 0xf1ff, 0xf3ff, 0xf200, 0xf7ff, 0xf600, 0xf400, 0xf5ff, 0xe000, 0xe1ff, 0xe3ff, 0xe200, 0xe7ff, 0xe600, 0xe400, 0xe5ff, 0xefff, 0xee00, 0xec00, 0xedff, 0xe800, 0xe9ff, 0xebff, 0xea00, 0xc000, 0xc1ff, 0xc3ff, 0xc200, 0xc7ff, 0xc600, 0xc400, 0xc5ff, 0xcfff, 0xce00, 0xcc00, 0xcdff, 0xc800, 0xc9ff, 0xcbff, 0xca00, 0xdfff, 0xde00, 0xdc00, 0xddff, 0xd800, 0xd9ff, 0xdbff, 0xda00, 0xd000, 0xd1ff, 0xd3ff, 0xd200, 0xd7ff, 0xd600, 0xd400, 0xd5ff, 0x8000, 0x81ff, 0x83ff, 0x8200, 0x87ff, 0x8600, 0x8400, 0x85ff, 0x8fff, 0x8e00, 0x8c00, 0x8dff, 0x8800, 0x89ff, 0x8bff, 0x8a00, 0x9fff, 0x9e00, 0x9c00, 0x9dff, 0x9800, 0x99ff, 0x9bff, 0x9a00, 0x9000, 0x91ff, 0x93ff, 0x9200, 0x97ff, 0x9600, 0x9400, 0x95ff, 0xbfff, 0xbe00, 0xbc00, 0xbdff, 0xb800, 0xb9ff, 0xbbff, 0xba00, 0xb000, 0xb1ff, 0xb3ff, 0xb200, 0xb7ff, 0xb600, 0xb400, 0xb5ff, 0xa000, 0xa1ff, 0xa3ff, 0xa200, 0xa7ff, 0xa600, 0xa400, 0xa5ff, 0xafff, 0xae00, 0xac00, 0xadff, 0xa800, 0xa9ff, 0xabff, 0xaa00};
static const uint32_t LookupTable_fourthword[256] = { 0x0, 0x1, 0x3, 0x2, 0x7, 0x6, 0x4, 0x5, 0xf, 0xe, 0xc, 0xd, 0x8, 0x9, 0xb, 0xa, 0x1f, 0x1e, 0x1c, 0x1d, 0x18, 0x19, 0x1b, 0x1a, 0x10, 0x11, 0x13, 0x12, 0x17, 0x16, 0x14, 0x15, 0x3f, 0x3e, 0x3c, 0x3d, 0x38, 0x39, 0x3b, 0x3a, 0x30, 0x31, 0x33, 0x32, 0x37, 0x36, 0x34, 0x35, 0x20, 0x21, 0x23, 0x22, 0x27, 0x26, 0x24, 0x25, 0x2f, 0x2e, 0x2c, 0x2d, 0x28, 0x29, 0x2b, 0x2a, 0x7f, 0x7e, 0x7c, 0x7d, 0x78, 0x79, 0x7b, 0x7a, 0x70, 0x71, 0x73, 0x72, 0x77, 0x76, 0x74, 0x75, 0x60, 0x61, 0x63, 0x62, 0x67, 0x66, 0x64, 0x65, 0x6f, 0x6e, 0x6c, 0x6d, 0x68, 0x69, 0x6b, 0x6a, 0x40, 0x41, 0x43, 0x42, 0x47, 0x46, 0x44, 0x45, 0x4f, 0x4e, 0x4c, 0x4d, 0x48, 0x49, 0x4b, 0x4a, 0x5f, 0x5e, 0x5c, 0x5d, 0x58, 0x59, 0x5b, 0x5a, 0x50, 0x51, 0x53, 0x52, 0x57, 0x56, 0x54, 0x55, 0xff, 0xfe, 0xfc, 0xfd, 0xf8, 0xf9, 0xfb, 0xfa, 0xf0, 0xf1, 0xf3, 0xf2, 0xf7, 0xf6, 0xf4, 0xf5, 0xe0, 0xe1, 0xe3, 0xe2, 0xe7, 0xe6, 0xe4, 0xe5, 0xef, 0xee, 0xec, 0xed, 0xe8, 0xe9, 0xeb, 0xea, 0xc0, 0xc1, 0xc3, 0xc2, 0xc7, 0xc6, 0xc4, 0xc5, 0xcf, 0xce, 0xcc, 0xcd, 0xc8, 0xc9, 0xcb, 0xca, 0xdf, 0xde, 0xdc, 0xdd, 0xd8, 0xd9, 0xdb, 0xda, 0xd0, 0xd1, 0xd3, 0xd2, 0xd7, 0xd6, 0xd4, 0xd5, 0x80, 0x81, 0x83, 0x82, 0x87, 0x86, 0x84, 0x85, 0x8f, 0x8e, 0x8c, 0x8d, 0x88, 0x89, 0x8b, 0x8a, 0x9f, 0x9e, 0x9c, 0x9d, 0x98, 0x99, 0x9b, 0x9a, 0x90, 0x91, 0x93, 0x92, 0x97, 0x96, 0x94, 0x95, 0xbf, 0xbe, 0xbc, 0xbd, 0xb8, 0xb9, 0xbb, 0xba, 0xb0, 0xb1, 0xb3, 0xb2, 0xb7, 0xb6, 0xb4, 0xb5, 0xa0, 0xa1, 0xa3, 0xa2, 0xa7, 0xa6, 0xa4, 0xa5, 0xaf, 0xae, 0xac, 0xad, 0xa8, 0xa9, 0xab, 0xaa};
void AudioOutputADAT::begin(void)
{
dma.begin(true); // Allocate the DMA channel first
block_ch1_1st = NULL;
block_ch2_1st = NULL;
block_ch3_1st = NULL;
block_ch4_1st = NULL;
block_ch5_1st = NULL;
block_ch6_1st = NULL;
block_ch7_1st = NULL;
block_ch8_1st = NULL;
// TODO: should we set & clear the I2S_TCSR_SR bit here?
config_ADAT();
#if defined(KINETISK)
CORE_PIN22_CONFIG = PORT_PCR_MUX(6); // pin 22, PTC1, I2S0_TXD0
const int nbytes_mlno = 2 * 8; // 16 Bytes per minor loop
dma.TCD->SADDR = ADAT_tx_buffer;
dma.TCD->SOFF = 4;
dma.TCD->ATTR = DMA_TCD_ATTR_SSIZE(2) | DMA_TCD_ATTR_DSIZE(2); //transfersize 2 = 32 bit, 5 = 32 byte
dma.TCD->NBYTES_MLNO = nbytes_mlno;
dma.TCD->SLAST = -sizeof(ADAT_tx_buffer);
dma.TCD->DADDR = &I2S0_TDR0;
dma.TCD->DOFF = 0;
dma.TCD->CITER_ELINKNO = sizeof(ADAT_tx_buffer) / nbytes_mlno;
dma.TCD->DLASTSGA = 0;
dma.TCD->BITER_ELINKNO = sizeof(ADAT_tx_buffer) / nbytes_mlno;
dma.TCD->CSR = DMA_TCD_CSR_INTHALF | DMA_TCD_CSR_INTMAJOR;
dma.triggerAtHardwareEvent(DMAMUX_SOURCE_I2S0_TX);
update_responsibility = update_setup();
dma.enable();
I2S0_TCSR |= I2S_TCSR_TE | I2S_TCSR_BCE | I2S_TCSR_FRDE | I2S_TCSR_FR;
dma.attachInterrupt(isr);
#elif defined(__IMXRT1052__) || defined(__IMXRT1062__)
#if defined(__IMXRT1052__)
CORE_PIN6_CONFIG = 3; //1:TX_DATA0
#elif defined(__IMXRT1062__)
CORE_PIN7_CONFIG = 3; //1:TX_DATA0
#endif
const int nbytes_mlno = 2 * 8; // 16 Bytes per minor loop
dma.TCD->SADDR = ADAT_tx_buffer;
dma.TCD->SOFF = 4;
dma.TCD->ATTR = DMA_TCD_ATTR_SSIZE(2) | DMA_TCD_ATTR_DSIZE(2);
dma.TCD->NBYTES_MLNO = nbytes_mlno;
dma.TCD->SLAST = -sizeof(ADAT_tx_buffer);
dma.TCD->DADDR = &I2S1_TDR0; // TEENSY 4.x I2S1
dma.TCD->DOFF = 0;
dma.TCD->CITER_ELINKNO = sizeof(ADAT_tx_buffer) / nbytes_mlno;
dma.TCD->DLASTSGA = 0;
dma.TCD->BITER_ELINKNO = sizeof(ADAT_tx_buffer) / nbytes_mlno;
dma.TCD->CSR = DMA_TCD_CSR_INTHALF | DMA_TCD_CSR_INTMAJOR;
dma.triggerAtHardwareEvent(DMAMUX_SOURCE_SAI1_TX); // TEENSY 4.x I2S1
update_responsibility = update_setup();
dma.enable();
I2S1_RCSR |= I2S_RCSR_RE; // todo: yes we need this but why ?
I2S1_TCSR |= I2S_TCSR_TE | I2S_TCSR_BCE | I2S_TCSR_FRDE | I2S_TCSR_FR;
dma.attachInterrupt(isr);
#endif
}
/*
https://ackspace.nl/wiki/ADAT_project
https://github.com/xcore/sc_adat/blob/master/module_adat_tx/src/adat_tx_port.xc
for information about the clock:
http://cache.freescale.com/files/32bit/doc/app_note/AN4800.pdf
We need a bitrate twice as high as the SPDIF example.
Because BITCLK can not be the same as MCLK, but only half of MCLK, we need a 2*MCLK (so for 44100 samplerate we need 88200 MCLK)
*/
