Thread: Using all Teensy3.x pins with a socket.

  1. #1
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164

    Using all Teensy3.x pins with a socket.

    I like to use a socket on my Teensy3.x projects to allow me to re-use the Teensy3.x device.

    Lately there has been a lot of discussion concerning the fragility of the extra pin pads on the underside of the board, and how they don't hold up well to repeated insertions and extractions. It seemed to me that there was a need for a little more structural rigidity. To that end, here's my solution:

    I got some snappable dual row .1"x.1" headers, like you might find at Adafruit, ebay, etc. I also got some right-angle headers.

    After breaking off one 2x14 section of the dual header, I carefully removed seven of the straight pins from the inner section, and replaced them with 7 right-angle pins that I carefully removed from the right angle header. I also removed the two pins that are next to VIN and 3.3V on the inside. I trimmed the right angle pins to cover just the pads on the underside of the Teensy3.x. I then did the same thing to a 2x7 section. The result looks like this (sorry for the photos, but none of my cameras work well closeup):
    Click image for larger version.

Name:	Teensy3.x-1-800x600.png
Views:	546
Size:	469.5 KB
ID:	2302Click image for larger version.

Name:	Teensy3.x-3-800x600.png
Views:	453
Size:	423.9 KB
ID:	2303


    I then place all of the headers in the Teensy3.x:
    Click image for larger version.

Name:	Teensy3.x-4-800x600.png
Views:	735
Size:	738.9 KB
ID:	2304

    And solder everything with a fine-tipped soldering iron. The dual headers add some mechanical rigidity, and allows the Teensy3.x to be used with a socket.

    I've also created an Eagle Library that uses the pinouts for the device.

    It takes a little work, but if you like to re-use your Teensy3.x, it may come in handy.
    Last edited by jimmayhugh; 08-15-2014 at 04:03 PM.

  2. #2
    Senior Member pictographer's Avatar
    Join Date
    May 2013
    Location
    San Jose, CA
    Posts
    548
    Very clever!

  3. #3
    Nice work. I would think it would take a lot of force to remove that from a header socket, at least the kind I have.

  4. #4
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164

    Updated setup

    I've been playing with this concept a little more, and this is my latest iteration:

    Click image for larger version.

Name:	Teensy3.1-with-reset.png
Views:	732
Size:	753.8 KB
ID:	2558

    I'm now using two 2x14 headers, wth the appropriate pins removed or replaced with right-angle pins as described above. I've used an exacto knife to carefully carve out an opening to accomodate the RTC crystal, and included a right angle pin that is used to bring out the RESET pad.

    I find that carefully tinning the pads and right-angle leads makes the soldering go much smoother.

    I've updated my EAGLE library part to include the RESET breakout. The updated library is here

  5. #5
    Quote Originally Posted by jimmayhugh View Post
    I've been playing with this concept a little more, and this is my latest iteration:

    Click image for larger version.

Name:	Teensy3.1-with-reset.png
Views:	732
Size:	753.8 KB
ID:	2558

    I'm now using two 2x14 headers, wth the appropriate pins removed or replaced with right-angle pins as described above. I've used an exacto knife to carefully carve out an opening to accomodate the RTC crystal, and included a right angle pin that is used to bring out the RESET pad.

    I find that carefully tinning the pads and right-angle leads makes the soldering go much smoother.

    I've updated my EAGLE library part to include the RESET breakout. The updated library is here
    Thanks for sharing this.

    How long are your right angle pins? It looks to me like you need about 5mm or so from the centre of your reset pad to the Teesny 3.1 reset pad. (I am trying to find an alternative part to the Adafruit one)

    Regards,

    Les

  6. #6
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164
    Quote Originally Posted by Pointy View Post
    Thanks for sharing this.

    How long are your right angle pins? It looks to me like you need about 5mm or so from the centre of your reset pad to the Teesny 3.1 reset pad. (I am trying to find an alternative part to the Adafruit one)

    Regards,

    Les
    As near as I can tell with my 63-year-old eyes, they are about 7mm on one leg and 7.5mm on the other. I just ordered a large quantity from china, and trim them to the correct size with a sharp set of cutters.
    Last edited by jimmayhugh; 06-17-2015 at 11:15 AM.

  7. #7
    Senior Member defragster's Avatar
    Join Date
    Feb 2015
    Posts
    4,042
    When I hit Adafruit links above I saw they have dual row bent pin headers - short inside and longer outside - that might be an easy way to get some too, 180 of each for $6: https://www.adafruit.com/products/1541

  8. #8
    Senior Member
    Join Date
    Jun 2013
    Location
    So. Calif
    Posts
    2,828
    those are simply SMD header pins, it would seem.

  9. #9
    Quote Originally Posted by jimmayhugh View Post
    As near as I can tell with my 63-year-old eyes, they are about 7mm on one leg and 7.5mm on the other. I just ordered a large quantity from china, and custthem to the correct size with a sharp set of cutters.
    Interesting, they don't look that long from the pictures and I couldn't see a data sheet. Most of the ones I am finding only have a 3-4.5mm tail.

    I'll keep looking.

    Regards,

    Les

  10. #10
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164
    Quote Originally Posted by defragster View Post
    When I hit Adafruit links above I saw they have dual row bent pin headers - short inside and longer outside - that might be an easy way to get some too, 180 of each for $6: https://www.adafruit.com/products/1541
    Yeah, that looks like what I got...

  11. #11
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164
    Quote Originally Posted by stevech View Post
    those are simply SMD header pins, it would seem.
    Thru-hole, not surface mount.

  12. #12
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164
    Quote Originally Posted by Pointy View Post
    Interesting, they don't look that long from the pictures and I couldn't see a data sheet. Most of the ones I am finding only have a 3-4.5mm tail.

    I'll keep looking.

    Regards,

    Les
    After I assemble the pins, I trim then to size with a sharp set of cutters.

  13. #13
    Senior Member
    Join Date
    Jan 2015
    Location
    SF Bay Area
    Posts
    255
    after I replaced the 7 straight pins with the right angled pins, now the header won't sit flush on the teensy.
    did you do some adjustment to the plastic so the header sits flush on the teensy pcb?
    this is going to annoy the heck out of me if I solder this knowing the header plastic is not flush on the teensy.

    update
    ok, if I push harder on the right angled pins with a long nose pliers until it sinks into the plastic, I am able to get the header to sit flush on the teensy.
    Last edited by doughboy; 08-01-2015 at 02:00 AM.

  14. #14
    Senior Member
    Join Date
    Jan 2015
    Location
    SF Bay Area
    Posts
    255
    For the eagle file, I see a problem with the thru holes. I think there should be through holes all the way up for both rows so you can solder your 2x14 female connector so you don't need to alter it and for a cleaner look. Also, I think there should be a second package that has thru holes for both this method and the method using 2x7 smt header so users of pcb have the option to choose which method they prefer.

    BTW, it is way easier to carve the notch for the crystal using dremel. You have better control and the result is cleaner.
    Last edited by doughboy; 08-01-2015 at 04:50 PM.

  15. #15
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164
    Quote Originally Posted by doughboy View Post
    For the eagle file, I see a problem with the thru holes. I think there should be through holes all the way up for both rows so you can solder your 2x14 female connector so you don't need to alter it and for a cleaner look. Also, I think there should be a second package that has thru holes for both this method and the method using 2x7 smt header so users of pcb have the option to choose which method they prefer.

    BTW, it is way easier to carve the notch for the crystal using dremel. You have better control and the result is cleaner.
    Here are all of the Teensy3.x eagle libraries that I've used at one time or another. They come with no guarantee, so use at your own risk.

    TeensyLbrs.zip

  16. #16
    Senior Member
    Join Date
    Jan 2015
    Location
    SF Bay Area
    Posts
    255

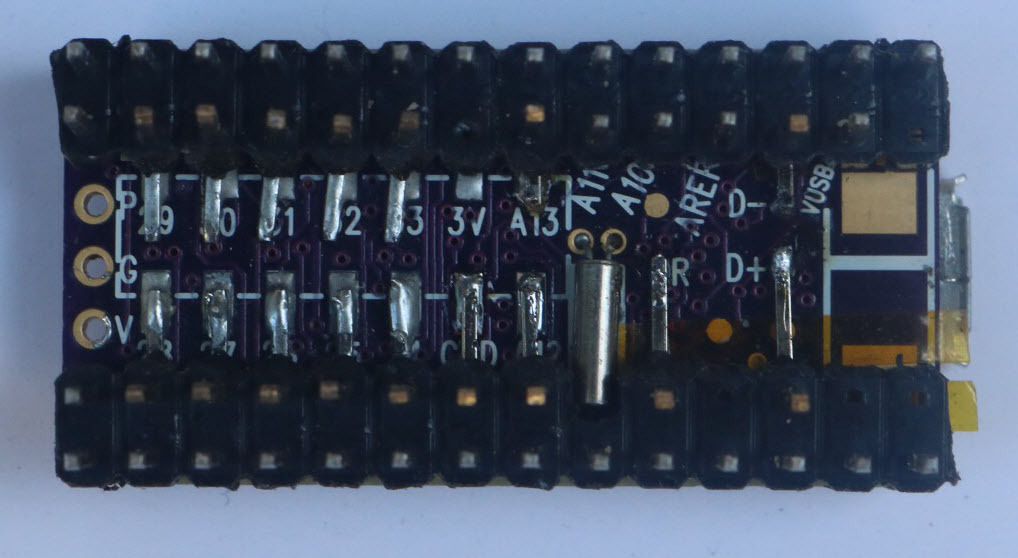

    I went ahead and soldered the headers to the teensy. And it worked fine. This is the best solution for me to get the bottom pins connected while keeping the small footprint and would recommend this over any other methods. And I can see how the double row header plastic helps to reinforce the pins soldered to the bottom pads. I know there is another thread that has other options to connect the bottom pads, but literally doubles the footprint, which I think defeats the purpose of using a teensy.

    Click image for larger version.

Name:	EF046114-838A-4FAB-932D-E3EE7A474CFF.jpg
Views:	331
Size:	333.0 KB
ID:	4981

    I initially planned on connecting every single bottom pad, including the USB D+ and D-, but in the end, opt for the minimalist approach and just connected the 10 digital pads since those are all I need to use in my project.

    I used smd solder paste on the smd pads, but I think tinning the pads with a little solder will work just fine. In hindsight, I think I should have snipped the D29-D33 pins shorter before soldering.

    I thought of creating a breadboard adapter pcb for this, but decided to just build one from a protoboard.

    BTW, the eagle library you posted uses 80 mil annular rings. I had to reduce the size to 40mil drill hole and 76mil annular ring since I use 10mil trace in order for traces to pass through between pads.

  17. #17
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164
    It appears that this thread will not work properly for the reset pin with the new Teensy3.2.

    I'll update it after I get a sample in hand.

  18. #18
    Senior Member
    Join Date
    Jan 2015
    Location
    SF Bay Area
    Posts
    255
    I had ordered pcb from oshpark for this right when 3.1 was about to be discontinued. I would not have placed the order if we had heads up 3.1 will be discontinued and pads placement changed, anyways.

    This is what it looks like. It has reset switch, USB connector, RTC battery backup, 3.3V regulator and SD card socket.


    without the teensy. I had routed D+ and D- reversed, so I had to cut the trace and rewire.


    bottom view. I mistakenly thought my SD MOSI and MISO were switched, turned out the trace was right, so the cut on the SD trace was not necessary.

  19. #19
    Senior Member
    Join Date
    Jan 2015
    Location
    SF Bay Area
    Posts
    255
    this is what the teensy 3.1 looks like, bottom view. I have inserted and removed this from a socket at least 100 times already with no problems.
    Notice the yellow Kapton tape I used to cover the other test points that were in the way.


    I still think this is the best solution to breakout all the bottom pins. And it is completely reversible if you do not want the pins later on your teensy.

    Too bad 3.1 is discontinued. I think the angled pins can still reach the new 3.2 reset and D+ and D- locations, but not sure if my current breakout board will work or not. Maybe it will with minor trace cut and rewiring and some Kapton tape.

    edit--
    I just noticed in my earlier post picture I did not have the reset and D+ D- pins yet on the teensy.
    I simply slid the pin header plastic up, added more pins and slide the plastic back. Hence this mod is completely reversible or can be altered if you later needed a different configuration.
    Last edited by doughboy; 10-03-2015 at 08:39 PM.

  20. #20
    Senior Member jimmayhugh's Avatar
    Join Date
    Nov 2012
    Posts
    164
    I finally had an opportunity to set up a Teensy3.2. I found the easiest way to get the reset pad connected was to simply maintain the current configuration, and tack-solder a 30ga. piece of wire between the pad and the leg (I left the crystal out to make it easier to see, I added it later):

    Click image for larger version.

Name:	Teensy3.2.jpg
Views:	218
Size:	111.4 KB
ID:	5357

    I also followed onehorse's advice, and got the same rework station. It makes adding the inner connections a snap.

  21. #21
    Junior Member
    Join Date
    Feb 2016
    Location
    Los Altos CA
    Posts
    3
    wow, this whole difficult project could be alleviated with a bigger Teensy with more SIP pads. If there is a schedule on that I would rather limit my projects to the SIP pins at hand until that happens.

  22. #22
    Senior Member MichaelMeissner's Avatar
    Join Date
    Nov 2012
    Location
    Ayer Massachussetts
    Posts
    2,278
    There is talk of a Teensy 3.1++ that will be coming out with a Teensy 3.1++ with 48 through hole pins (https://forum.pjrc.com/threads/24633...f-a-Teensy-3-1), but evidently there are some roadblocks, and there is no schedule.

  23. #23
    Junior Member
    Join Date
    Feb 2016
    Location
    Los Altos CA
    Posts
    3
    IF they wanted to I could lay the board out . not a very big deal, but I would like to put a more robust MiniUSB on it.

  24. #24
    Junior Member
    Join Date
    Feb 2017
    Posts
    11
    That's pretty wild! And very creative! I ran into this thing on Digi-Key literally seconds before I saw your solution; here's the manufacturer's page: http://www.cnctech.us/productsdispla...Adapters&si=90.
    I've measured pretty carefully; it should fit, and the height should be correct too! Thing is...I don't want to buy 2500 of them (or something like that). I've contacted the manufacturer; I'll see what they say...

  25. #25
    Senior Member Frank B's Avatar
    Join Date
    Apr 2014
    Location
    Germany
    Posts
    3,641
    I ordered these : https://de.aliexpress.com/item/10Pcs...608.0.0.qTQJGp yesterday. I don't know if they are ok, but they look good.
    Last edited by Frank B; 02-11-2017 at 07:48 PM.
