Hello all,

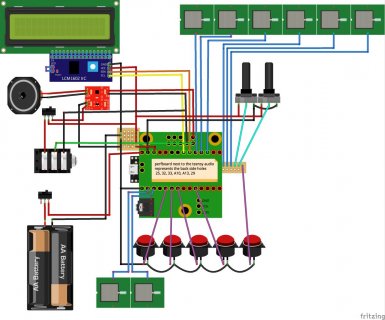

I am using the teensy 3.2 with Teensy audio board to recreate this project with some of my own modifications. I am having trouble with getting sound out of a speaker unless I plug in headphones also. I have included a Fritzing diagram of my circuit and the main code (minus the TeensyAudioDesignTool.h and the note_frequency.h) that I am using. One thing to note is that I will be using an I2C screen and as such this is what is in the Fritzing diagram, however the code is still set-up as per my prototype that was using the teensy-view.
What I want to have is a toggle switch to toggle between using the speaker and the 1/4in line out for sound but always still have the headphones producing sound (like in the link). I am using a mono amp for this which is the same as the sparkfun tutorial one.
Any help would be appreciated,
Thanks!
I am using the teensy 3.2 with Teensy audio board to recreate this project with some of my own modifications. I am having trouble with getting sound out of a speaker unless I plug in headphones also. I have included a Fritzing diagram of my circuit and the main code (minus the TeensyAudioDesignTool.h and the note_frequency.h) that I am using. One thing to note is that I will be using an I2C screen and as such this is what is in the Fritzing diagram, however the code is still set-up as per my prototype that was using the teensy-view.
What I want to have is a toggle switch to toggle between using the speaker and the 1/4in line out for sound but always still have the headphones producing sound (like in the link). I am using a mono amp for this which is the same as the sparkfun tutorial one.
Any help would be appreciated,
Thanks!
Code:
/******************************************************************************
Digital Handpan V2 Code for Teesny
Joel Bartlett @ SparkFun Electronics
Original Creation Date: December 16, 2017
Modified Code: David Cool
Modify Date: January 12, 2017
Modified further by Asha Ward
Modify Date: 4th April 2018
This sketch produces polyphonic notes when any number of eight capacitive touch pads are
touched, thus replicating a Handpan (or Hang) steel drum. This sketch
makes use of the Teensy Audio Shield (https://www.sparkfun.com/products/12767)
as well as the Teensy Audio System Design Tool (http://www.pjrc.com/teensy/gui/).
All capactive touch sensing is handled by the Teensy's built in Touch Sense Pins.
Hardware:
Teensy 3.2 Dev Board (https://www.sparkfun.com/products/13736)
Teensy Audio Board (https://www.sparkfun.com/products/12767)
Teensy View OLED Screen (https://www.sparkfun.com/products/14048)
Various buttons and potentiometers
Development environment specifics:
IDE: Arduino IDE V 1.8.5 with the Teensyduino Add-on installed V Teensy Loader V1.30
This code is beerware; if you see me (or any other SparkFun
employee) at the local, and you've found our code helpful,
please buy us a round!
Distributed as-is; no warranty is given.
*******************************************************************************/
//These libraries are included by the Teensy Audio System Design Tool
#include <Audio.h>
#include <Wire.h>
#include <SPI.h>
#include <SerialFlash.h>
#include <Bounce.h>
#include <TeensyView.h>
#include <Wire.h>
#include <MAX17043GU.h>
#define MAX17043_ADDRESS 0x36// Battery Fuel Gauge
#include "note_frequency.h"
#include "TeensyAudioDesignTool.h"
//Alternate (Audio) Teensy View Setup
#define PIN_RESET 2
#define PIN_DC 21
#define PIN_CS 20
#define PIN_SCK 14
#define PIN_MOSI 7
#define volKnob A13 //grey wire
#define decayKnob A10//black wire
MAX17043GU battery;
TeensyView oled(PIN_RESET, PIN_DC, PIN_CS, PIN_SCK, PIN_MOSI);
//an array to define each of the eight touch sense pins,
//all other touch sense pins are used by the Teensy Audio Shield (16,17,18,19)
int pinTouch[] = {0, 1, 15, 16, 17, 25, 32, 33}; //25 = white, 32 = yellow, 33 = blue
int scale_index = 0;//var to keep track fo which scale is being used
int note_index = 57;//starting note value (A)
int octave_index = 0;
int wave_index = -1;//var to keep track of which wave is being used
int numOfWaves = 4;//5-1=4
int dcVal = 0;//value to control the decay of each note
int padNumber = 0;//debug for printing pad values to OLED
////////////////////CHANGE THIS WHEN ADDING MORE SCALES
int numOfScales = 13;//indexed at zero (subtract 1)
///////////////////////////////////////////////////////
int scale[8];
//buttons for incrementing or decrementing through each scale
Bounce button0 = Bounce(4, 15);
Bounce button1 = Bounce(3, 15);
Bounce button2 = Bounce(29, 15);
//buttons for incrementing or decrementing the octave
Bounce foot0 = Bounce(5, 30);
Bounce foot1 = Bounce(8, 30);
float vol = 0;
float voltage;
float percentage;
int counter = 0;
bool debug = false;
////////////////////////////////////////////////////////
void setup()
{
//initialize buttons
pinMode(4, INPUT_PULLUP);
pinMode(3, INPUT_PULLUP);
pinMode(5, INPUT_PULLUP);
pinMode(8, INPUT_PULLUP);
pinMode(29, INPUT_PULLUP);
button0.update();
button1.update();
button2.update();
foot0.update();
foot1.update();
//initialize Serial
Serial.begin(115200);
// Start I2C
Wire.begin();
delay(100);
battery.restart();
//set aside audio memory
AudioMemory(64);
//initialize audio settings
sine1.begin(WAVEFORM_SQUARE);
sine1.amplitude(0.125);
sine1.frequency(440);
sine2.begin(WAVEFORM_SQUARE);
sine2.amplitude(0.125);
sine2.frequency(440);
sine3.begin(WAVEFORM_SQUARE);
sine3.amplitude(0.125);
sine3.frequency(440);
sine4.begin(WAVEFORM_SQUARE);
sine4.amplitude(0.125);
sine4.frequency(440);
sine5.begin(WAVEFORM_SQUARE);
sine5.amplitude(0.125);
sine5.frequency(440);
sine6.begin(WAVEFORM_SQUARE);
sine6.amplitude(0.125);
sine6.frequency(440);
sine7.begin(WAVEFORM_SQUARE);
sine7.amplitude(0.125);
sine7.frequency(440);
sine8.begin(WAVEFORM_SQUARE);
sine8.amplitude(0.125);
sine8.frequency(440);
dc1.amplitude(0);
dc2.amplitude(0);
dc3.amplitude(0);
dc4.amplitude(0);
dc5.amplitude(0);
dc6.amplitude(0);
dc7.amplitude(0);
dc8.amplitude(0);
//initialize volume
sgtl5000_1.enable();
sgtl5000_1.volume(0.8);
sgtl5000_1.lineOutLevel(5);
//Initialize the OLED
oled.begin();
// clear(ALL) will clear out the OLED's graphic memory.
// clear(PAGE) will clear the Arduino's display buffer.
oled.clear(ALL); // Clear the display's memory (gets rid of artifacts)
// To actually draw anything on the display, you must call the
// display() function.
oled.display();
// Give the splash screen some time to shine
delay(1000);
changeScale();//start off at middle C
}
//////////////////////////////////////////////
void loop()
{
volumeCheck();//check the volume knob
touchCheck();//check if any of the capacitive pads have been touched
dcValCheck();//check the decay knob
buttonCheck();//check for button presses to change the scale
/* counter++;
if (counter == 10000); //don't check battery all the time, slows opperation
{
getBattery();
counter = 0;
}
*/
oledPrint();//print to TeensyView
}
/*void getBattery()
{
// Get the values
voltage = battery.voltageLevel();
percentage = battery.fuelLevel();
}*/
void oledPrint()
{
oled.clear(PAGE);
oled.setCursor(0, 0);
oled.print("Scale =");
if (note_index == 60)
oled.print("C ");
if (note_index == 61)
oled.print("C# ");
if (note_index == 62)
oled.print("D ");
if (note_index == 63)
oled.print("D# ");
if (note_index == 64)
oled.print("E ");
if (note_index == 65)
oled.print("F ");
if (note_index == 66)
oled.print("F# ");
if (note_index == 67)
oled.print("G ");
if (note_index == 68)
oled.print("G# ");
if (note_index == 57)
oled.print("A ");
if (note_index == 58)
oled.print("A# ");
if (note_index == 59)
oled.print("B ");
if (scale_index == 0)
oled.print("Major");
if (scale_index == 1)
oled.print("Minor");
if (scale_index == 2)
oled.print("Akebono");
if (scale_index == 3)
oled.print("Pygmy");
if (scale_index == 4)
oled.print("Equinox");
if (scale_index == 5)
oled.print("Sapphire");
if (scale_index == 6)
oled.print("Gypsy");
if (scale_index == 7)
oled.print("SlvrSpring");
if (scale_index == 8)
oled.print("Integral");
if (scale_index == 9)
oled.print("Dorian");
if (scale_index == 10)
oled.print("GldArcadia");
if (scale_index == 11)
oled.print("PentMaj");
if (scale_index == 12)
oled.print("PentMin");
if (scale_index == 13)
oled.print("Blues");
oled.setCursor(0, 8);
oled.print("Volume =");
int newVol = map(vol, 0.0, 0.8, 0, 100);
oled.print(newVol);
oled.print("% ");
if (wave_index == 0)
oled.print("Sine");
if (wave_index == 1)
oled.print("Saw");
if (wave_index == 2)
oled.print("Square");
if (wave_index == 3)
oled.print("Triangle");
if (wave_index == 4)
oled.print("Sample");
oled.setCursor(0, 16);
oled.print("Decay = ");
oled.print((int)dcVal / 10);
oled.print("% Oct:");
oled.print(octave_index);
/* oled.setCursor(0, 24);
oled.print("Batt = ");
oled.print(percentage);
oled.print("% ");
oled.print(voltage);
oled.print("V");
*/
oled.display();
delay(10);
}
/////////////////////////////////////////////////////
void volumeCheck()
{
vol = (float)analogRead(volKnob) / 1280.0;
mixerMain.gain(0, vol);
mixerMain.gain(1, vol);
}
/////////////////////////////////////////////////////
void dcValCheck()
{
//check knob and set value as delay on dc constant for sine wave decay
dcVal = map(analogRead(decayKnob), 0, 1023, 1, 1000);
}
/////////////////////////////////////////////////////
void touchCheck()
{
//Each capacitive touch pad will vary based on the size and material it is made of
//The value necessary to trigger each note will require some trial and error to get the
//sensitivity just right. Try adjusting these values to get the best response.
if (touchRead(pinTouch[0]) > 1800)
{
//once a pad is touched, a value from the note frquency froma table is looked up via a 2D table
//with x corresponding to a scale and y corresponding to one of the eight notes on the drum.
if (octave_index == 1)
sine1.frequency(note_frequency[scale[0] + 12]);
else if (octave_index == -1)
sine1.frequency(note_frequency[scale[0] - 12]);
else if (octave_index == 2)
sine1.frequency(note_frequency[scale[0] + 24]);
else if (octave_index == -2)
sine1.frequency(note_frequency[scale[0] - 24]);
else
sine1.frequency(note_frequency[scale[0]]);
dc1.amplitude(1.0, 5);
}
if (touchRead(pinTouch[0]) <= 1800)
{
//one the pad is released, the note fades out with a decay val set by the dcVal knob
dc1.amplitude(0, dcVal);
}
if (touchRead(pinTouch[1]) > 1800)
{
if (octave_index == 1)
sine2.frequency(note_frequency[scale[1] + 12]);
else if (octave_index == -1)
sine2.frequency(note_frequency[scale[1] - 12]);
else if (octave_index == 2)
sine2.frequency(note_frequency[scale[1] + 24]);
else if (octave_index == -2)
sine2.frequency(note_frequency[scale[1] - 24]);
else
sine2.frequency(note_frequency[scale[1]]);
dc2.amplitude(1.0, 5);
}
if (touchRead(pinTouch[1]) <= 1800)
{
dc2.amplitude(0, dcVal);
}
if (touchRead(pinTouch[2]) > 1900)
{
if (octave_index == 1)
sine3.frequency(note_frequency[scale[2] + 12]);
else if (octave_index == -1)
sine3.frequency(note_frequency[scale[2] - 12]);
else if (octave_index == 2)
sine3.frequency(note_frequency[scale[2] + 24]);
else if (octave_index == -2)
sine3.frequency(note_frequency[scale[2] - 24]);
else
sine3.frequency(note_frequency[scale[2]]);
dc3.amplitude(1.0, 5);
}
if (touchRead(pinTouch[2]) <= 1900)
{
dc3.amplitude(0, dcVal);
}
if (touchRead(pinTouch[3]) > 1800)
{
if (octave_index == 1)
sine4.frequency(note_frequency[scale[3] + 12]);
else if (octave_index == -1)
sine4.frequency(note_frequency[scale[3] - 12]);
else if (octave_index == 2)
sine4.frequency(note_frequency[scale[3] + 24]);
else if (octave_index == -2)
sine4.frequency(note_frequency[scale[3] - 24]);
else
sine4.frequency(note_frequency[scale[3]]);
dc4.amplitude(1.0, 5);
}
if (touchRead(pinTouch[3]) <= 1800)
{
dc4.amplitude(0, dcVal);
}
if (touchRead(pinTouch[4]) > 1800)
{
if (octave_index == 1)
sine5.frequency(note_frequency[scale[4] + 12]);
else if (octave_index == -1)
sine5.frequency(note_frequency[scale[4] - 12]);
else if (octave_index == 2)
sine5.frequency(note_frequency[scale[4] + 24]);
else if (octave_index == -2)
sine5.frequency(note_frequency[scale[4] - 24]);
else
sine5.frequency(note_frequency[scale[4]]);
dc5.amplitude(1.0, 5);
}
if (touchRead(pinTouch[4]) <= 1800)
{
dc5.amplitude(0, dcVal);
}
if (touchRead(pinTouch[5]) > 1800)
{
if (octave_index == 1)
sine6.frequency(note_frequency[scale[5] + 12]);
else if (octave_index == -1)
sine6.frequency(note_frequency[scale[5] - 12]);
else if (octave_index == 2)
sine6.frequency(note_frequency[scale[5] + 24]);
else if (octave_index == -2)
sine6.frequency(note_frequency[scale[5] - 24]);
else
sine6.frequency(note_frequency[scale[5]]);
dc6.amplitude(1.0, 5);
}
if (touchRead(pinTouch[5]) <= 1800)
{
dc6.amplitude(0, dcVal);
}
if (touchRead(pinTouch[6]) > 1800)
{
if (octave_index == 1)
sine7.frequency(note_frequency[scale[6] + 12]);
else if (octave_index == -1)
sine7.frequency(note_frequency[scale[6] - 12]);
else if (octave_index == 2)
sine7.frequency(note_frequency[scale[6] + 24]);
else if (octave_index == -2)
sine7.frequency(note_frequency[scale[6] - 24]);
else
sine7.frequency(note_frequency[scale[6]]);
dc7.amplitude(1.0, 5);
}
if (touchRead(pinTouch[6]) <= 1800)
{
dc7.amplitude(0, dcVal);
}
if (touchRead(pinTouch[7]) > 1700)
{
if (octave_index == 1)
sine8.frequency(note_frequency[scale[7] + 12]);
else if (octave_index == -1)
sine8.frequency(note_frequency[scale[7] - 12]);
else if (octave_index == 2)
sine8.frequency(note_frequency[scale[7] + 24]);
else if (octave_index == -2)
sine8.frequency(note_frequency[scale[7] - 24]);
else
sine8.frequency(note_frequency[scale[7]]);
dc8.amplitude(1.0, 5);
}
if (touchRead(pinTouch[7]) <= 1700)
{
dc8.amplitude(0, dcVal);
}
}
//////////////////////////////////////////////////
void buttonCheck()
{
button0.update();
button1.update();
button2.update();
foot0.update();
foot1.update();
//if button 0 is pressed, increment the scale being used
if (button0.fallingEdge())
{
note_index++;
padNumber++;
//check for overflow
if (note_index > 68)
{
note_index = 57;
}
if (padNumber > 7)
{
padNumber = 0;
}
octave_index = 0;
changeScale();
}
//if button 1 is pressed, decrement the scale being used
if (button1.fallingEdge())
{
scale_index++;
padNumber--;
//check for overflow
if (scale_index > numOfScales)
{
scale_index = 0;
}
if (padNumber < 0)
{
padNumber = 7;
}
octave_index = 0;
changeScale();
}
//if foot pedal 0 is pressed, increment the octave
if (foot0.risingEdge())
{
octave_index++;
if (octave_index > 2)
octave_index = 2;
}
//if button 1 is pressed, decrement the scale being used
if (foot1.risingEdge())
{
octave_index--;
if (octave_index < -2)
octave_index = -2;
}
//-------
//if button 1 is pressed, cycle through wave types
if (button2.risingEdge())
{
wave_index++;
//check for overflow
if (wave_index > numOfWaves)
{
wave_index = 0;
}
switch (wave_index) {
case 0:
Serial.println("WAVEFORM_SINE");
sine1.begin(WAVEFORM_SINE);
sine2.begin(WAVEFORM_SINE);
sine3.begin(WAVEFORM_SINE);
sine4.begin(WAVEFORM_SINE);
sine5.begin(WAVEFORM_SINE);
sine6.begin(WAVEFORM_SINE);
sine7.begin(WAVEFORM_SINE);
sine8.begin(WAVEFORM_SINE);
break;
case 1:
Serial.println("WAVEFORM_SAWTOOTH");
sine1.begin(WAVEFORM_SAWTOOTH);
sine2.begin(WAVEFORM_SAWTOOTH);
sine3.begin(WAVEFORM_SAWTOOTH);
sine4.begin(WAVEFORM_SAWTOOTH);
sine5.begin(WAVEFORM_SAWTOOTH);
sine6.begin(WAVEFORM_SAWTOOTH);
sine7.begin(WAVEFORM_SAWTOOTH);
sine8.begin(WAVEFORM_SAWTOOTH);
break;
case 2:
Serial.println("WAVEFORM_SQUARE");
sine1.begin(WAVEFORM_SQUARE);
sine2.begin(WAVEFORM_SQUARE);
sine3.begin(WAVEFORM_SQUARE);
sine4.begin(WAVEFORM_SQUARE);
sine5.begin(WAVEFORM_SQUARE);
sine6.begin(WAVEFORM_SQUARE);
sine7.begin(WAVEFORM_SQUARE);
sine8.begin(WAVEFORM_SQUARE);
break;
case 3:
Serial.println("WAVEFORM_TRIANGLE");
sine1.begin(WAVEFORM_TRIANGLE);
sine2.begin(WAVEFORM_TRIANGLE);
sine3.begin(WAVEFORM_TRIANGLE);
sine4.begin(WAVEFORM_TRIANGLE);
sine5.begin(WAVEFORM_TRIANGLE);
sine6.begin(WAVEFORM_TRIANGLE);
sine7.begin(WAVEFORM_TRIANGLE);
sine8.begin(WAVEFORM_TRIANGLE);
break;
case 4:
Serial.println("WAVEFORM_SAMPLE_HOLD");
sine1.begin(WAVEFORM_SAMPLE_HOLD);
sine2.begin(WAVEFORM_SAMPLE_HOLD);
sine3.begin(WAVEFORM_SAMPLE_HOLD);
sine4.begin(WAVEFORM_SAMPLE_HOLD);
sine5.begin(WAVEFORM_SAMPLE_HOLD);
sine6.begin(WAVEFORM_SAMPLE_HOLD);
sine7.begin(WAVEFORM_SAMPLE_HOLD);
sine8.begin(WAVEFORM_SAMPLE_HOLD);
break;
/*
case 2:
Serial.println("WAVEFORM_SAWTOOTH_REVERSE");
sine1.begin(WAVEFORM_SAWTOOTH_REVERSE);
sine2.begin(WAVEFORM_SAWTOOTH_REVERSE);
sine3.begin(WAVEFORM_SAWTOOTH_REVERSE);
sine4.begin(WAVEFORM_SAWTOOTH_REVERSE);
sine5.begin(WAVEFORM_SAWTOOTH_REVERSE);
sine6.begin(WAVEFORM_SAWTOOTH_REVERSE);
sine7.begin(WAVEFORM_SAWTOOTH_REVERSE);
sine8.begin(WAVEFORM_SAWTOOTH_REVERSE);
break;
case 5:
Serial.println("WAVEFORM_ARBITRARY");
sine1.begin(WAVEFORM_ARBITRARY);
sine2.begin(WAVEFORM_ARBITRARY);
sine3.begin(WAVEFORM_ARBITRARY);
sine4.begin(WAVEFORM_ARBITRARY);
sine5.begin(WAVEFORM_ARBITRARY);
sine6.begin(WAVEFORM_ARBITRARY);
sine7.begin(WAVEFORM_ARBITRARY);
sine8.begin(WAVEFORM_ARBITRARY);
break;
case 6:
Serial.println("WAVEFORM_PULSE");
sine1.begin(WAVEFORM_PULSE);
sine2.begin(WAVEFORM_PULSE);
sine3.begin(WAVEFORM_PULSE);
sine4.begin(WAVEFORM_PULSE);
sine5.begin(WAVEFORM_PULSE);
sine6.begin(WAVEFORM_PULSE);
sine7.begin(WAVEFORM_PULSE);
sine8.begin(WAVEFORM_PULSE);
break;
*/
} //end case
//------
}
}
void changeScale()
{
//Change numOfScales variable at top if adding new scale!!
int root = note_index;
if (scale_index == 0) //Major Scale 2,2,3,2,3,2,2 (WholeStep, WS, WS+HalfStep, WS, WS+HS, WS, WS) Asha changed to w,w,h,w,w,w,h
{
scale[0] = root;
scale[1] = root + 2;
scale[2] = root + 4;
scale[3] = root + 5;
scale[4] = root + 7;
scale[5] = root + 9;
scale[6] = root + 11;
scale[7] = root + 12;
}
if (scale_index == 1) //Minor Scale 3,2,2,3,2,3,2
{
scale[0] = root;
scale[1] = root + 3;
scale[2] = root + 5;
scale[3] = root + 7;
scale[4] = root + 10;
scale[5] = root + 12;
scale[6] = root + 15;
scale[7] = root + 17;
}
if (scale_index == 2) //Akebono Scale 2,1,4,1,4,2,1
{
scale[0] = root;
scale[1] = root + 2;
scale[2] = root + 3;
scale[3] = root + 7;
scale[4] = root + 8;
scale[5] = root + 12;
scale[6] = root + 14;
scale[7] = root + 15;
}
if (scale_index == 3) //Pygmy Scale 2,1,4,3,2,2,1
{
scale[0] = root;
scale[1] = root + 2;
scale[2] = root + 3;
scale[3] = root + 7;
scale[4] = root + 10;
scale[5] = root + 12;
scale[6] = root + 14;
scale[7] = root + 15;
}
if (scale_index == 4) //Equinox Scale 4,1,2,2,2,1,4
{
scale[0] = root;
scale[1] = root + 4;
scale[2] = root + 5;
scale[3] = root + 7;
scale[4] = root + 9;
scale[5] = root + 11;
scale[6] = root + 12;
scale[7] = root + 16;
}
if (scale_index == 5) //Sapphire 3,2,4,1,2,3,2
{
scale[0] = root;
scale[1] = root + 3;
scale[2] = root + 5;
scale[3] = root + 9;
scale[4] = root + 10;
scale[5] = root + 12;
scale[6] = root + 15;
scale[7] = root + 17;
}
if (scale_index == 6) //Gypsy 1,3,1,2,1,2,2
{
scale[0] = root;
scale[1] = root + 1;
scale[2] = root + 4;
scale[3] = root + 5;
scale[4] = root + 7;
scale[5] = root + 8;
scale[6] = root + 10;
scale[7] = root + 12;
}
if (scale_index == 7) //Silver Spring 4,1,2,2,3,4,1
{
scale[0] = root;
scale[1] = root + 4;
scale[2] = root + 5;
scale[3] = root + 7;
scale[4] = root + 9;
scale[5] = root + 12;
scale[6] = root + 16;
scale[7] = root + 17;
}
if (scale_index == 8) //Integral 2,1,4,1,2,2,2
{
scale[0] = root;
scale[1] = root + 2;
scale[2] = root + 3;
scale[3] = root + 7;
scale[4] = root + 8;
scale[5] = root + 10;
scale[6] = root + 12;
scale[7] = root + 14;
}
if (scale_index == 9) //Dorian 2,1,2,2,2,3,2
{
scale[0] = root;
scale[1] = root + 2;
scale[2] = root + 3;
scale[3] = root + 5;
scale[4] = root + 7;
scale[5] = root + 9;
scale[6] = root + 12;
scale[7] = root + 14;
}
if (scale_index == 10) //Golden Arcadia 4,3,4,1,2,4,1
{
scale[0] = root;
scale[1] = root + 4;
scale[2] = root + 7;
scale[3] = root + 11;
scale[4] = root + 12;
scale[5] = root + 14;
scale[6] = root + 18;
scale[7] = root + 19;
}
if (scale_index == 11) // pentatonic major ws, ws, hs+ws, ws , hs+ws
{
scale[0] = root;
scale[1] = root + 2;
scale[2] = root + 4;
scale[3] = root + 7;
scale[4] = root + 9;
scale[5] = root + 12;
scale[6] = root + 14;
scale[7] = root + 16;
}
if (scale_index == 12) // pentatonic minor ws+hs, w, w, ws+hs, w
{
scale[0] = root;
scale[1] = root + 3;
scale[2] = root + 5;
scale[3] = root + 7;
scale[4] = root + 10;
scale[5] = root + 12;
scale[6] = root + 15;
scale[7] = root + 17;
}
if (scale_index == 13) // blues ws+hs, w, h, h, ws+hs, w
{
scale[0] = root;
scale[1] = root + 3;
scale[2] = root + 5;
scale[3] = root + 6;
scale[4] = root + 7;
scale[5] = root + 10;
scale[6] = root + 12;
scale[7] = root + 15;
}
}
