Dual SMD datasheet cathode identification?

[SteveSFX]

Hi all

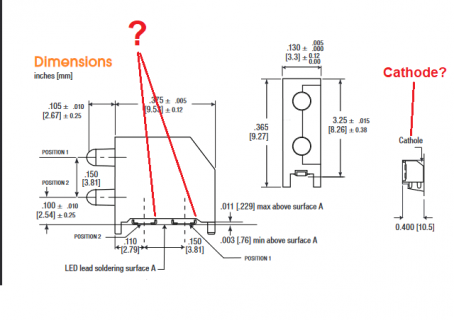

Just designing a PCB and need some dual stacked leds. Want to use these, but the data sheet is useless.
Which pins are the cathodes?

I 'think' its the one nearest the rear sloping case, and the second one in from the other end?

Dual led datasheet

Why can't they just put decent information on these things.... it's not hard



[PaulS]

Why can't they just put decent information on these things.... it's not hard

Fully agree. This is how I read the unclear datasheet:

Paul



[SteveSFX]

Drives me mad. Been hours trying to figure out unclear data sheets. The whole point of the sheet is to give you the information you need!

This company do samples, so I have requested some so I can check this before I get the PCB made.



[drmartin]

PaulS is correct in reply above. See 596 Prism Detailed SMD Spec at

https://s3-us-west-2.amazonaws.com/catsy.557/C18463.pdf

Note the recommended Solder Pad/Hole drawing on the Right Side that labels the PCB hole pattern with the LED schematic above.
